Gauges
Pressure Gauges
Differential and duplex differential pressure gauges are designed for the oil and gas, alternative fuels, chemical, HVAC, refrigeration and air handling industries. These differential and duplex pressure gauges are for measuring high and low pressure and static process pressures. Differential pressure and duplex pressure gauges are for measuring 2 applied pressures.
type
Differential / Duplex
application
Oil, Gas, Chemical, HVAC
measurement
High/Low/Static Pressure
accuracy
Industrial Grade
Temperature Gauge
Our comprehensive range of temperature gauges covers all industrial requirements: BMT Bimetal Temperature Gauges: BMT Temperature Gauge operating on the Bimetal coil principle meets the general industrial and OEM temperature measurements. Size: 63mm, 100mm, 150mm. Accuracy: Class 1 (EN-13190). Range: -50 to 400 °C. GTS Gas Filled Temperature Gauges: Mass® GTS inert gas actuated Temperature Gauge is a reliable instrument that can fit in to variety of applications. Features include rugged construction, fast response time, high repeatability. Accuracy: Class 1 (EN-13190). Range: -50 to 500 °C. MTS Mercury Filled Temperature Gauges: Size: 100mm, 150mm. Accuracy: Class 1 (EN-13190). Range: -38 to 650 °C.
types
Bimetal / Gas / Mercury
accuracy
Class 1 (EN-13190)
range
-50 to 650 °C
material
SS 316L

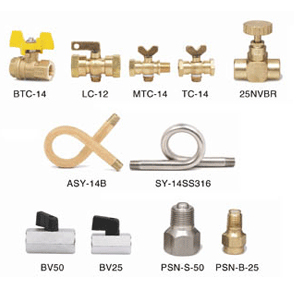

Gauge Cock, Snubber & Accessories
We are a renowned manufacturer and exporter of Gauge Cock and needle valve. Designed in compliance with industrial standards these cock and valve are widely used for isolating the pressure gauge from pressure medium or to throttle and to damp pressure pulses. These are widely appreciated for reliability and application specific design.
type
Cock / Needle Valve / Snubber
compliance
Industrial Standards
function
Isolation / Throttling / Damping
design
Application Specific

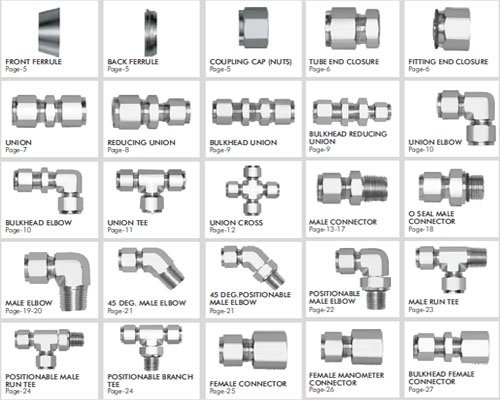

Instrument Fittings
General instruments has built reputation for manufacturing standard instrumentation / tube fittings as well as customized fittings based on client requirements and various process applications. General Compression tube fittings are double ferrule type fittings which provide leak-proof, torque-free seals at the tubing connection. They provide safety and eliminates hazardous leaks of fluids in instrumentation field for a process, pressure, hydraulic and other applicable tubing systems.
type
Double Ferrule Compression
material
SS 316 / Brass / CS
connection
Leak-proof / Torque-free
application
Hydraulic / Pressure Systems
Capsule Pressure Gauge
A capsule pressure gauge is a low-pressure measuring instrument designed for accurate monitoring of gaseous media at very low pressures. It uses a capsule sensing element formed by joined diaphragms that expand or contract with pressure changes, making it suitable for HVAC, medical, laboratory, and industrial applications.
type
Low Pressure Gauge
application
Gas and air pressure measurement
measurement
Low differential pressure
range
Vacuum to low positive pressure
media
Non-corrosive gases
display
Analog dial indication
measurement principle
Capsule diaphragm element
accuracy
±1.6% FS
dial size
63 mm / 100 mm
connection
Bottom or back entry
material
SS304 / Brass

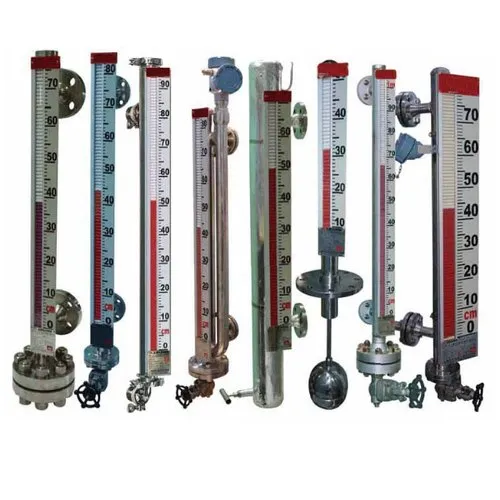

Magnetic Level Gauge
A magnetic level gauge is a visual level indication device used for continuous monitoring of liquid levels in tanks and vessels. It operates using a magnetic float inside a chamber that drives an external indicator, providing clear level indication without direct contact with the process fluid.
type
Magnetic Level Gauge
application
Tank and vessel level indication
measurement
Continuous liquid level
media
Liquids and chemicals
indication
Magnetic flap / roller display
installation
Side mounted
measurement principle
Magnetic float coupling
pressure rating
Up to 40 bar
temperature range
-20°C to +350°C
chamber material
SS304 / SS316
output option
Switches / Transmitter optional
mounting
Side / top mounted
