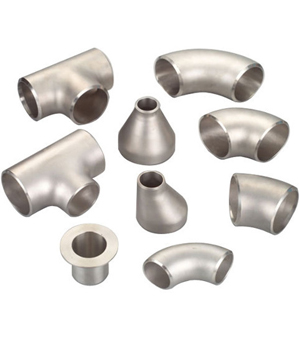

SS Pipe & Fittings
SS Pipe & Fittings
Having a definite quality management system, we are regarded as the one of the leading manufacturer, exporter and supplier of an extensive gamut of Stainless Steel Pipe Fittings. The offered fittings are manufactured by using premium quality stainless steel and modern technology by our adroit professionals. Our provided fittings are used to assist proper flow of liquid and gas. In addition to this, we provide these fittings in variegated sizes and designs at nominal prices.
design
Sturdy design
tempResistance
High temperature resistance
accuracy
Dimensional accuracy

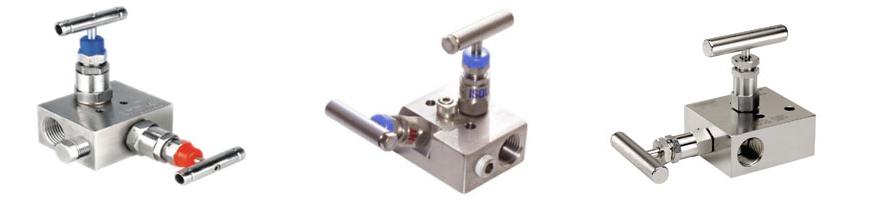

2 VALVE MANIFOLD
We have 2 valve manifolds are designed for connecting system impulse line & transmitters. These manifold consist of two valve configuration which allows for easy isolation, calibration, block and bleed for gauges, pressure switches and static pressure transmitting instruments. These manifolds are rugged in construction to withstand high pressures and temperatures. The manifolds are rated for pressures as high as 6000 PSI at 200°F or 4000 PSI at 500°F with PTFE Packing. For a Higher Temperatures Grafoil Packing is used. These valve manifolds combine the functions of a tee, calibration valve, isolation valve and all tubing and fittings into a single compact unit thus reducing number of fittings and space required for installation.
rating
Up to 6000 PSI
temp
Up to 500°F
packing
PTFE / Grafoil
design
Compact Multi-function

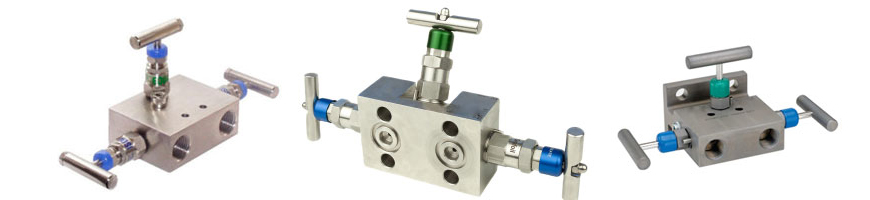

3 VALVE MANIFOLD
We have 3 valve manifolds pipe to pipe (R), pipe to flange (T) and flange to flange (H) designed for connecting system impulse lines & transmitters. These manifolds consist of 1/2″ NPT(F), pipe to flange or flange to flange connections on 54mm (2 1/8″) centers, and of one equalizer valve, two block valves and 2 nos 1/4″ NPT(F) purge (VENT) connections. These manifolds are rugged in construction to withstand high pressures and temperatures. The manifolds are rated for pressures as high as 6000 PSI at 200°F or 4000 PSI at 500°F with PTFE Packing. For a Higher Temperatures Grafoil Packing is used.
types
Pipe-Pipe / Pipe-Flange / Flange-Flange
connections
1/2" NPT(F) / 1/4" Purge
rating
6000 PSI @ 200°F
center
54mm (2 1/8")

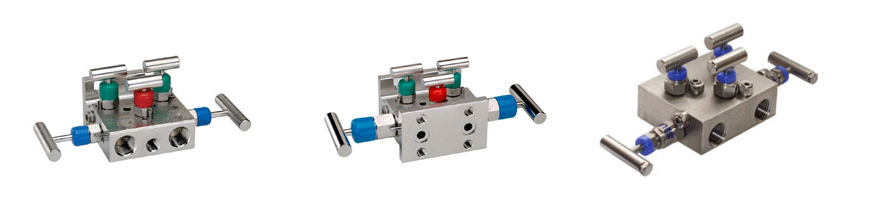

5 VALVE MANIFOLD
We have 5 valve manifolds pipe to pipe (R), pipe to flange (T) and flange to flange (H) designed for connecting system impulse lines & transmitters. These manifolds consist of 1/2″ NPT(F), pipe to flange or flange to flange connections on 54mm (2 1/8″) centers, and of one equaliser valve, two block valves, one Bleed Valve and 2 nos 1/4″ NPT(F) purge (VENT) connections. These manifolds are rugged in construction to withstand high pressures and temperatures. The manifolds are rated for pressures as high as 6000 PSI at 200°F or 4000 PSI at 500°F with PTFE Packing. For a Higher Temperatures Grafoil Packing is used.
config
Equaliser, 2 Block, 1 Bleed
rating
6000 PSI
temp
4000 PSI @ 500°F
standards
PTFE / Grafoil Options

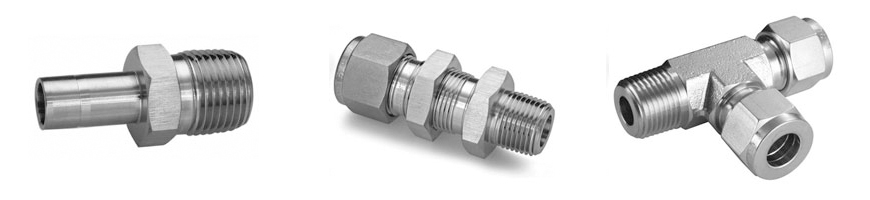

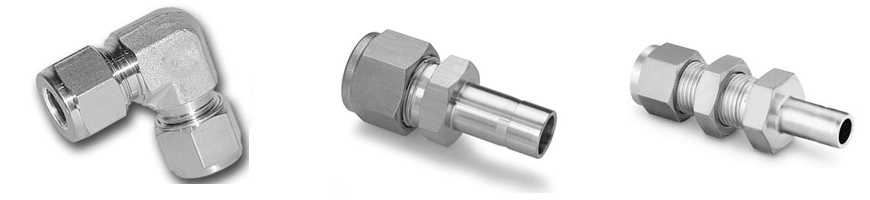

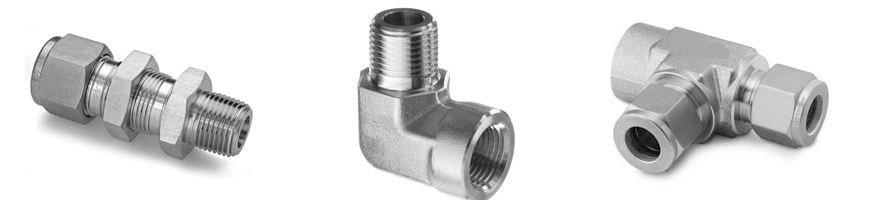

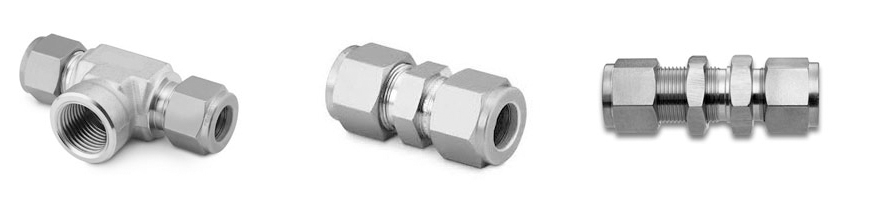

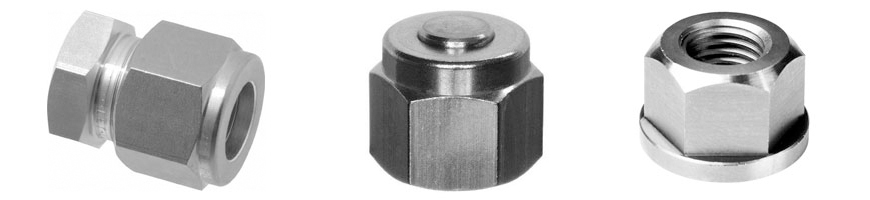

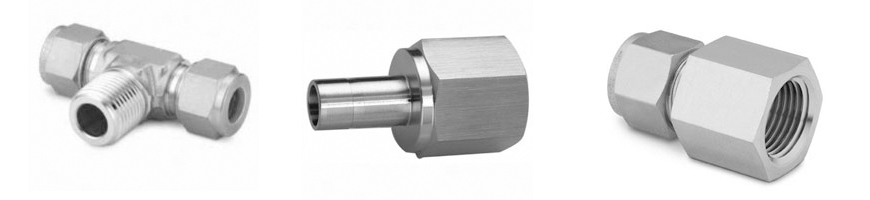

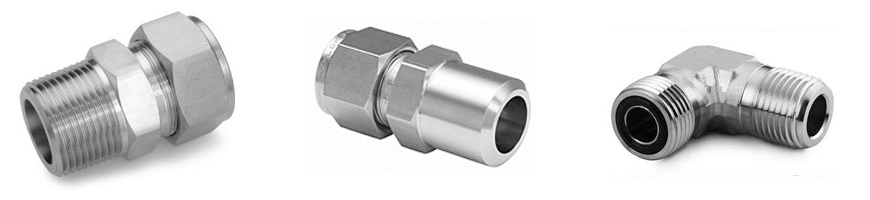

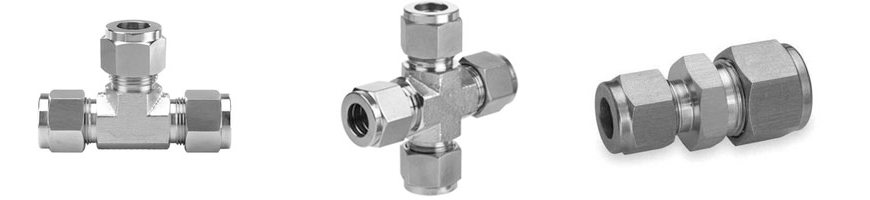

INSTRUMENTATION TUBE FITTINGS
