Wireless System
Wireless System

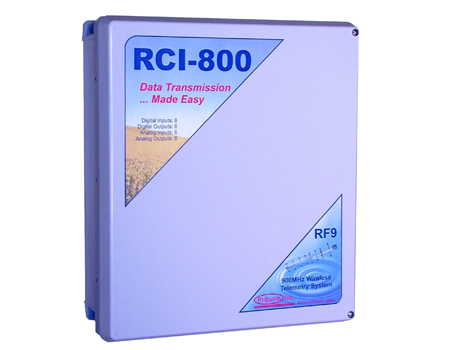

The RCI-800-RF9 is a bi-directional signal communication system that exchanges 8 analog (0-20mA) and 8 dry contact inputs between a master and a remote unit. A complete system consists of one master station and one remote station each with 8 analog inputs/outputs, and 8 relay contact outputs. Retreives signals from remote sites for monitoring and control. Licensing-free 900MHz Spread Spectrum Radio using channel hopping technology for greater reliability. Line-of-Sight ranges of up to 12 miles can be achieved.
radio
900MHz Spread-Spectrum
io
8 Analog / 8 Dry Contact
output
8 Form C Relay
range
Up to 12 Miles (LOS)
logic
Microprocessor Controlled
LoRa Wireless Communication System
A LoRa wireless communication system is a long-range, low-power industrial networking solution designed for remote monitoring and IoT applications. It enables reliable wireless data transmission between field instruments, sensors, gateways, and control systems across large industrial areas with minimal power consumption.
type
Long Range Wireless System
application
Industrial IoT and remote monitoring
communication
LoRa / LoRaWAN
range
Up to several kilometers
power
Low power consumption
connectivity
Sensor and gateway integration
wireless technology
LoRa / LoRaWAN
communication range
2–15 km depending on environment
frequency band
433 MHz / 868 MHz / 915 MHz
power supply
Battery / 24 Vdc
network topology
Star network
data interface
Modbus / RS485 / Ethernet
